اسطوانة صغيرة من سلسلة MI

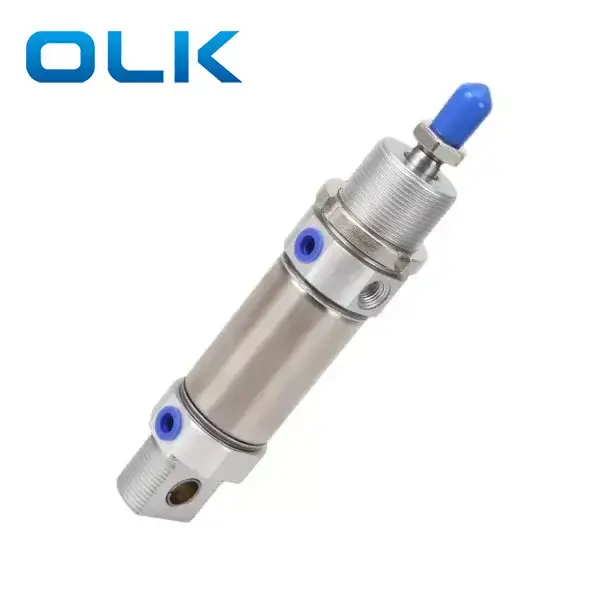

The Ouleikai (OLK) MI series mini cylinders are made of stainless steel, providing high strength and corrosion resistance, suitable for various harsh environments. They are available in double-acting, single-acting push, and single-acting pull types.

MI Stainless Steel mini cylinder bore sizes include φ8, φ10, φ12, φ16, φ20, φ25, φ32, and φ40. The working medium is air, with an operating temperature range of -20 to 70°C. Compact in size, they are ideal for applications with limited space, facilitating easy installation and maintenance, enhancing production efficiency, and reducing downtime.

OULEIKAI MI  Stainless Steel Mini Cylinders:  Product characteristics

1. ISO 6432 Standard Compliance: Ensures compatibility and standardization.

2. Fixed Front and Rear Bumpers: Reduces the impact of cylinder direction changes.

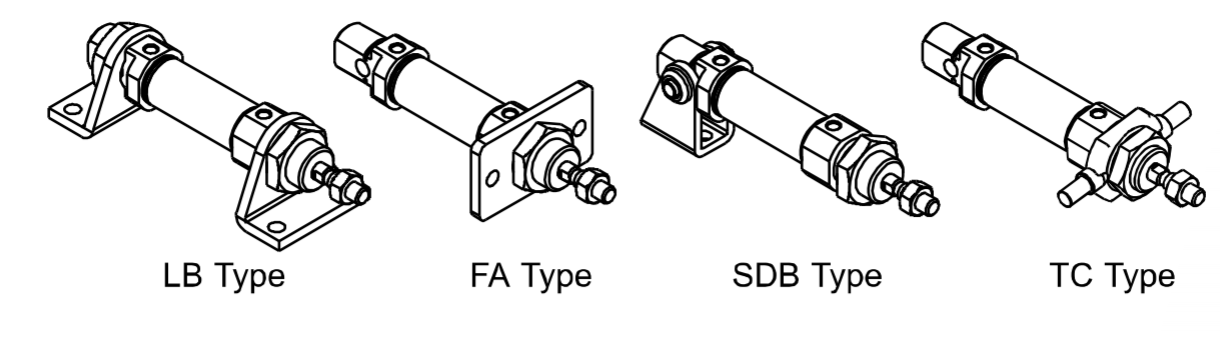

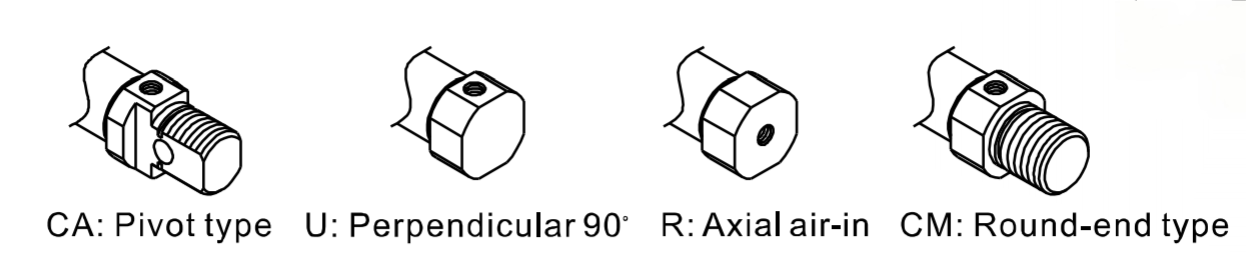

3. Various Rear Cover Options: Makes cylinder installation more convenient.

4. Reliable Connection: The front and rear covers are crimped and rolled with the stainless steel body for a secure connection.

5. Corrosion Resistance: The stainless steel piston rod and cylinder body allow the cylinder to operate in moderately corrosive environments.

MI Series Mini Cylinder Standard specifications
